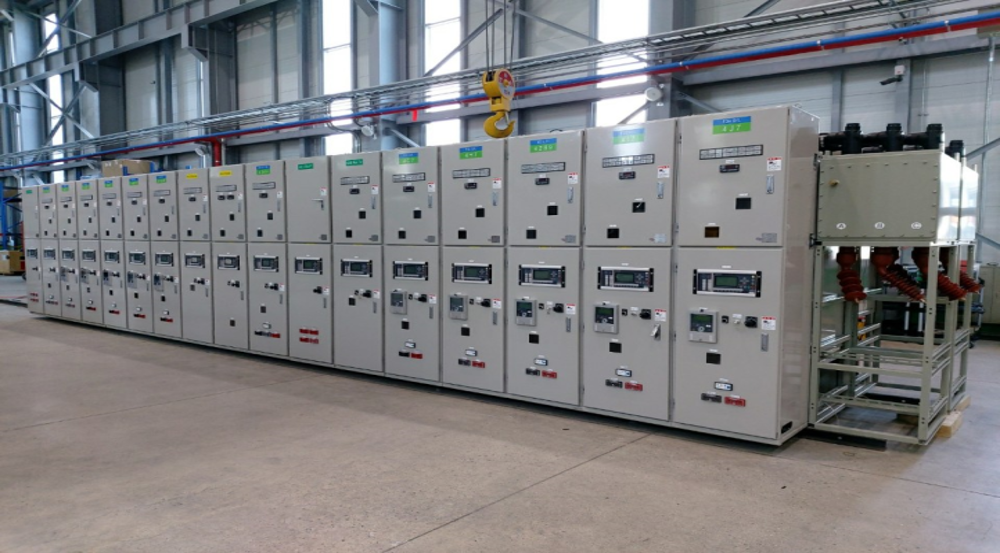

25.8kV Eco Gas Insulated Switchgear

It is an environmentally friendly and space-efficient power system solution. It provides both safety and affordability.

quality firstmanagement

<table cellpadding="3" cellspacing="0" mapping_key="" style="border-collapse:collapse;margin:0px;overflow-wrap:break-word;table-layout:fixed;word-break:normal;">
	<tbody>
		<tr>
			<td colspan="2" style="width:1050px;height:70px;border-width:0px 1px 1px 0px;border-style:solid;border-color:rgb(0, 0, 0) rgb(255, 255, 255) rgb(45, 61, 104) rgb(0, 0, 0);border-image:initial;background-color:rgb(46, 61, 103);padding-left:1.9%;padding-right:1.9%;">
			<p style="color: rgb(255, 255, 255); margin-top: 0px; margin-bottom: 0px; line-height: 1.2;"><strong>Specification</strong></p>
			</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">25.8 kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated power-frequency withstand voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">50 kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated short-time withstand current</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">up to 25 kA</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated lightning impulse withstand voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">125 kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Current</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">630 A, 2,000 A</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated gas pressure</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">0.3 MPa</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Frequency</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">60 Hz</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Applied Standard</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">KEPCO GS5925-0128</td>
