Epoxy Insulated Fault Interrupters for Distribution Automatic of 25.8kV Overhead Line

Epoxy Insulated Fault Interrupters for Distribution Automatic of 25.8kV Overhead Line SF6 Gas Insulated Load Break Switch Epoxy Insulated Vacuum Recloser SF6 Gas Insulated Vacuum Recloser Epoxy Insulated Load Break Switch Epoxy Insulated Load Break Switch (DS Type) SF6 Gas Insulated Load Break Switch (Underground Line) Dry Air Insulated Load Break Switch (Underground Line) Epoxy Insulated Load Break Switch (Underground Line) Polymer Housed Lightening Arrester with Lead wire

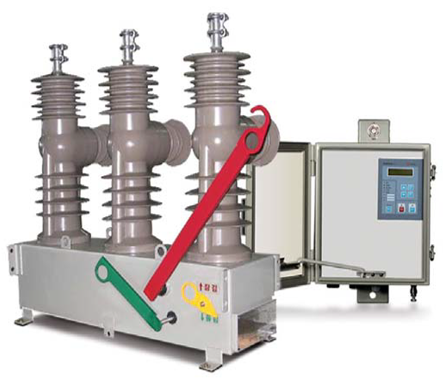

Epoxy Insulated Fault Interrupters for Distribution Automatic of 25.8kV Overhead Line

Distribution Automation Epoxy Insulated Fault Interrupters are integral to modern distribution automation systems, allowing for quick fault detection and isolation

quality firstmanagement

<table cellpadding="3" cellspacing="0" mapping_key="" style="border-collapse:collapse;margin:0px;overflow-wrap:break-word;table-layout:fixed;word-break:normal;">
	<tbody>
		<tr>
			<td colspan="2" style="width: 1050px;height:70px;border-width:0px 1px 1px 0px;border-style:solid;border-color:rgb(0, 0, 0) rgb(255, 255, 255) rgb(45, 61, 104) rgb(0, 0, 0);border-image:initial;background-color:rgb(46, 61, 103);padding-left:1.9%;padding-right:1.9%;">
			<p style="color: rgb(255, 255, 255); margin-top: 0px; margin-bottom: 0px; line-height: 1.2;"><strong>Specification</strong></p>
			</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">25.8kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Current</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">400A</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Cutout Current</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">12.5kA</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Frequency</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">60Hz</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Short Time Current (RMS)</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">12.5kA</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Making Current (peak)</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">32.5kA (5times)</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Power Frequency Withstand Voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">60kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Lightning Impulse Withstand Voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">150kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Operation Method</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">Automatic, Manual</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Mechanical endurance (times)</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">5,000 times</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Insulation Medium</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">Switch Part: VI (vacuum) , Conduction Part: Epoxy</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Applied Standard</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">KEPCO ES-5925-0135, IEC 62271-111</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Control Circuit Operation Power</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">AC220V, DC24V</td>
		</tr>
