SF6 Gas Insulated Load Break Switch (Underground Line)

Epoxy Insulated Fault Interrupters for Distribution Automatic of 25.8kV Overhead Line SF6 Gas Insulated Load Break Switch Epoxy Insulated Vacuum Recloser SF6 Gas Insulated Vacuum Recloser Epoxy Insulated Load Break Switch Epoxy Insulated Load Break Switch (DS Type) SF6 Gas Insulated Load Break Switch (Underground Line) Dry Air Insulated Load Break Switch (Underground Line) Epoxy Insulated Load Break Switch (Underground Line) Polymer Housed Lightening Arrester with Lead wire

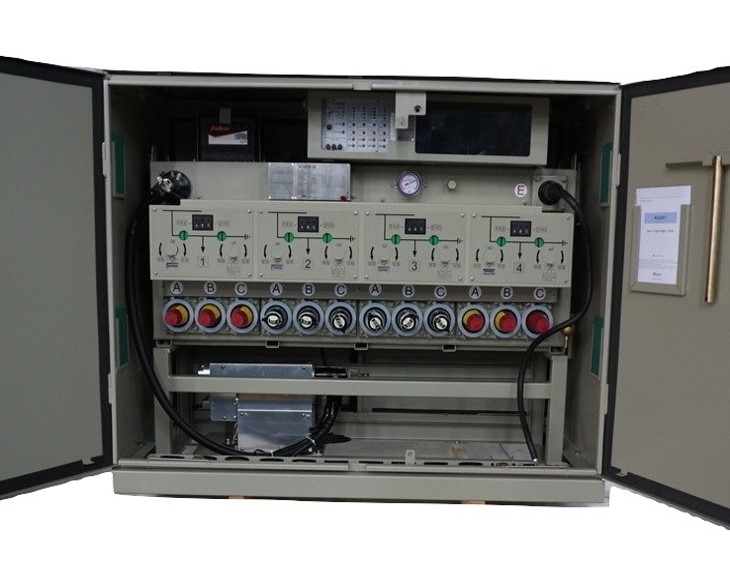

SF6 Gas Insulated Load Break Switch (Underground Line)

It will enable safe and efficient power distribution and will perform well in high voltage environments.

quality firstmanagement

<table cellpadding="3" cellspacing="0" mapping_key="" style="border-collapse:collapse;margin:0px;overflow-wrap:break-word;table-layout:fixed;word-break:normal;">
	<tbody>
		<tr>
			<td colspan="2" style="width:1050px;height:70px;border-width:0px 1px 1px 0px;border-style:solid;border-color:rgb(0, 0, 0) rgb(255, 255, 255) rgb(45, 61, 104) rgb(0, 0, 0);border-image:initial;background-color:rgb(46, 61, 103);padding-left:1.9%;padding-right:1.9%;">
			<p style="color: rgb(255, 255, 255); margin-top: 0px; margin-bottom: 0px; line-height: 1.2;"><strong>Specification</strong></p>
			</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">25.8kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Current</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">600A</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Frequency</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">60Hz</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Short Time Current (RMS)</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">12.5kA</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Rated Making Current (peak)</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">32.5kA (5times)</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Power Frequency Withstand Voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">60kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Lightning Impulse Withstand Voltage</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">125kV</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Operation Method</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">Automatic, Manual</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Mechanical endurance (times)</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">5,000 times</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Insulation Medium</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">SF6 Gas</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Applied Standard</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">KEPCO ES-5925-0002, IEC 62271-103</td>
		</tr>
		<tr>
			<td style="width: 25%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;background-color:rgb(249, 249, 249);padding-left:1.9%;padding-right:1.9%;">Control Circuit Operation Power</td>
			<td style="width: 75%; height: 60px; border-width: 1px 0px; border-style: solid; border-color: rgb(45, 61, 104) rgb(0, 0, 0); border-image: initial;padding-left:1.9%;padding-right:1.9%;">AC220V, DC24V</td>
		</tr>
	</tbody>
</table>
